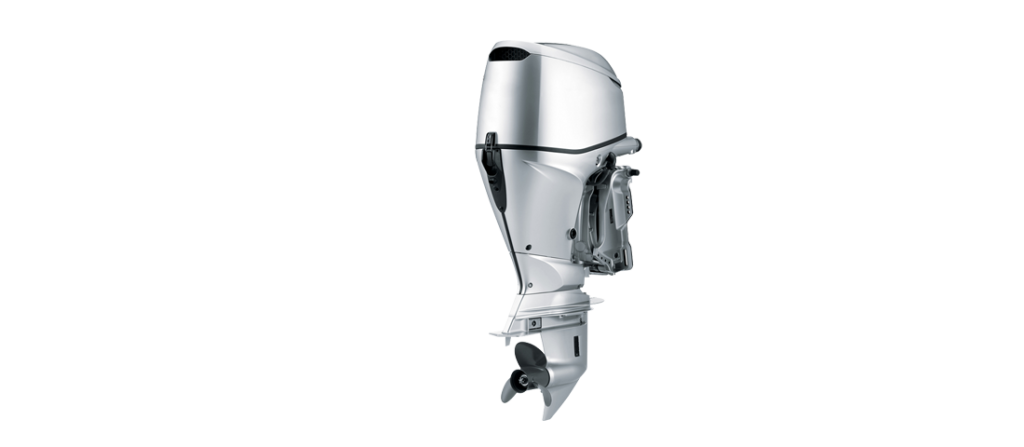

Wolong
40kw
Specification
Input power
40 kW / 60 Hp
Input Voltage
262.5 V~420 V
L*W*H [mm]
792*417*1580
Total Weight
125 kg
Motor
Motor type
PMSM permanent magnet synchronous motor
Input Voltage
240 V AC
Motor weight
38 kg
Motor efficient
94%
Motor rated torque
80Nm @5500rpm
Motor maximum speed
9000rpm
Motor Control
FOC
Motor Size
φ220mm * L230mm
Propeller RPM
2360 rpm
Recommended stern height
65.8 cm
Control handle
Tiller
Ambient temperature
'- 5~ 45 ℃
Cooling
water cooled
IP
67
controller
Input Voltage
350 V DC
Input power
42 Kw
Input current
120 A
Fundamental frequency
0 ~ 433 @0 ~ 6500rpm, 2p=8
Ambient temperature
- 5~ 55 ℃
Cooling
water cooled
propeller
gear ratio
2.33：1
propeller material
Aluminum alloy
Propeller diameter and pitch
14*11"
Number of propeller blades
3

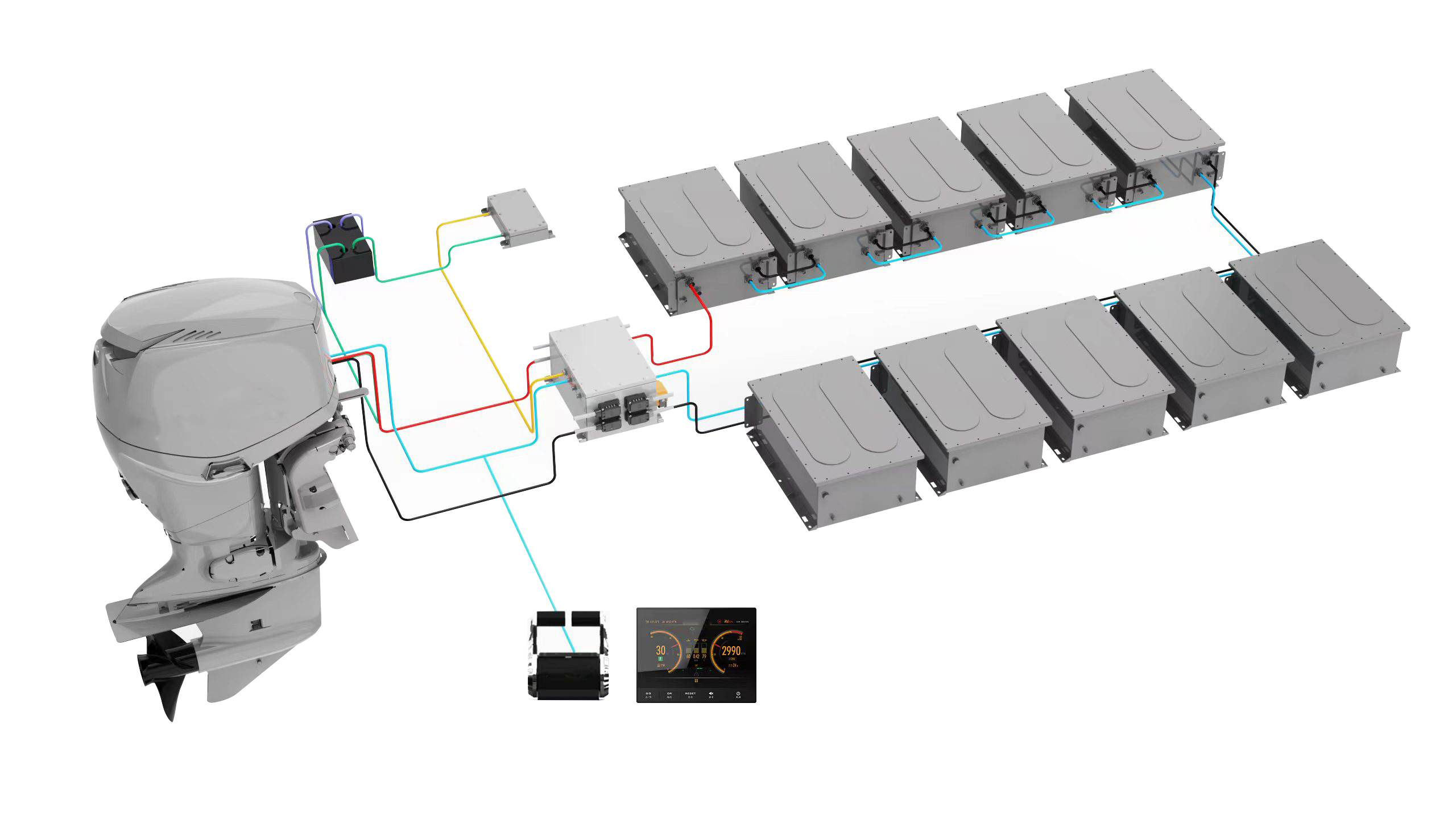

System diagram
